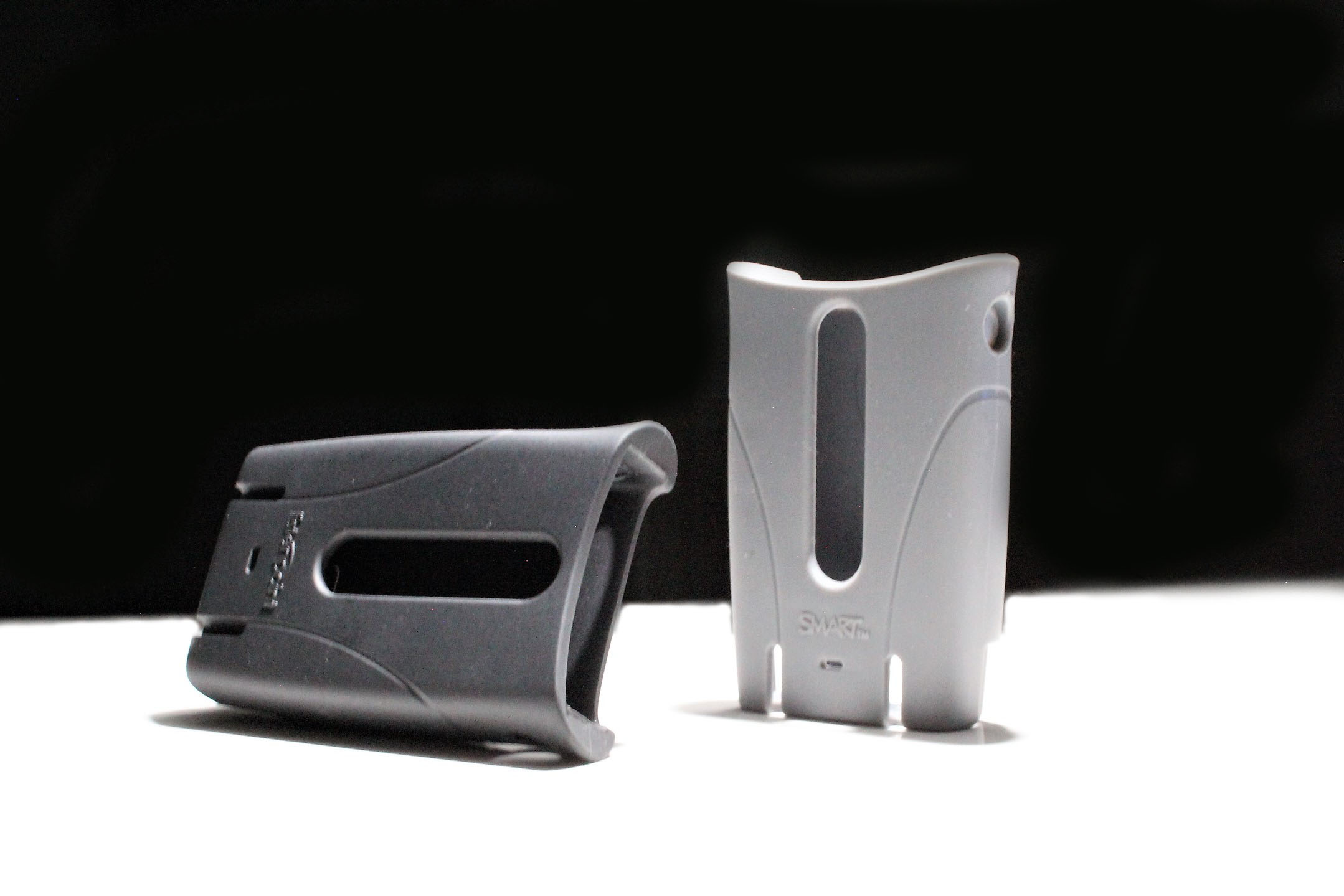

Compression Molding​

Material (Manufacturers, Hardness)​​ LSR (Liquid Silicone Rubber) : KCC, Shinetsu (10 ~ 90A)
HCR (High Consistency Silicone Rubber) : KCC, Shinetsu, Dow Corning (10~90A)
Medical Silicone : ISO10993, USP Class VI (40~70A), NuSil (Wacker), Dow Coring
​ Fluor silicone : Shinetsu (20~80A)
​ NBR ((acrylo)Nitrile Butadiene Rubber) : Kumho Petrochemical (40~90A)
​ EPDM (Ethylene Propylene Diene Monomer) : KUMHO POLYCHEM (40A~90A)
​ NR (Natural Rubber) : SP Chemical (40~90A)
​ SBR (Styrene Butadiene Rubber) : SP Chemical (40~90A)
​ CR (Chloroprene Rubber) : SP Chemical (40~90A)
​ H-NBR (Hydrogenated-Nitrile Butadiene Rubber) : SP Chemical (50~90A)
​ PU (Poly Urethane) : SP Chemical (60~90A)
* Medical Silicone, Fluor silicone : MOQ 20Kg​​​​

Max. Size : 550x900x400mm

​​ Colors​​ Pantone color code or chip is mandatory, NBR/EPDM – MOQ 100Kg and all others will be 10Kg, NBR clear is not feasible for coloring​​​​​​
Quick Turn  (Mobile phone size)
​​ Simple : 5~6 days, Medium : 8 days, Complex : 11 days​​​​​​

Life Cycle time​​ Tool material : 1.5K (S45C), Mass Production : 200K (P20)​​​​​​
Key Quality Criterions​​ Sink, Color match, Flash ……….​​​​​​
